MY1000 printing slotting die cut

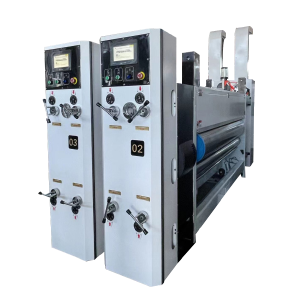

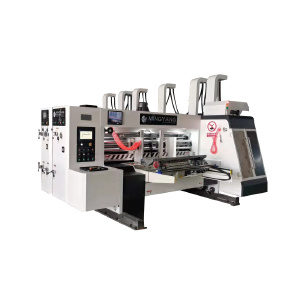

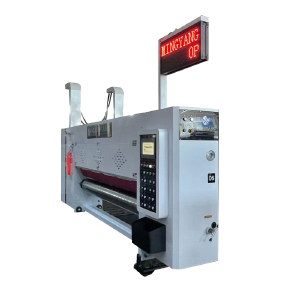

1000 Series Printing Slotting Machine
Top printing ,moving units,guiding roller transfer for the whole machine.Machine operating is controlled by touch screen,electric button and hand wheel .Remote control system available for electrical part, manufacturer can judge the working condition by internet.
key word:
Category:
- Product Description
- Technical Parameter
-
- Commodity name: 1000 Series Printing Slotting Machine
- Commodity ID: MY1000 printing slotting die cut
Feeder unit
◆ Both continous and skip feeding mode available ,more sizes can be setting.
◆ Vacuum wind volume and feeding pressure is adjusted by frequency motor ,it is suitable for bend paper and different paper size.
◆ Brush and dust remove motors are used for cleaning the paper surface.
◆ Servo motor driven feeding system for optional.
Printer unit
Guiding rollers transfer for the whole machine, servo motor is used for printing phase setting.
Safety button available ,ensure operating safety.
◆ Double roll system /doctor blade system available.
◆ Automatic ink washing and recirculating system .
◆ Automatic reset.
Slot unit
◆ Single slot blade and double shafts creasing structure.
◆ Slot blade holder and creasing holder move synchronously under screwed bar and straight guide rail, higher accuracy .
◆ Pressure between wheels can be set by manual .( motorized for optional)
◆ Order memory function available and quick order change.
Die cutter unit
◆ Anvil roll can moving in left/right +-20mm.
◆ Anvil cover repaired cutter available ,which can extended the anvil cover service time.
◆ TaiWan brand for anvil cover , thickness up to 10mm, longer service time and easy to replace .
-
Item/ Model MY-1020 MY-1022 Max.speed ( sheet/hour) 12000 12000 Working speed( sheet/hour) 9000 9000 Max.Sheet Size mm 1000×2100 1000×2300 Min.Sheet Size mm 300×600 300×600 Skip Feed Size mm 1300×2100 1300×2300 Max.Print Area mm 1000×2000 1000×2200 Feeding Tolerance mm ±1.0 ±1.0 Print Tolerance mm ±0.5 ±0.5 Slot Tolerance mm ±1.5 ±1.5 Die Cut Tolerance mm ±1 ±1 Standard thickess of Plate mm 7.2 7.2 Smallest Sq.Box 130×130 130×130 Smallest R.Box 270×65 270×65 Max.slot depth mm 250 250
